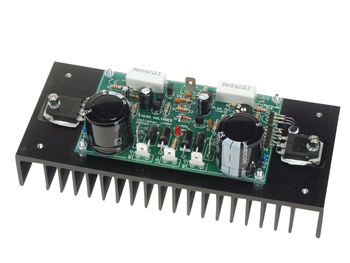

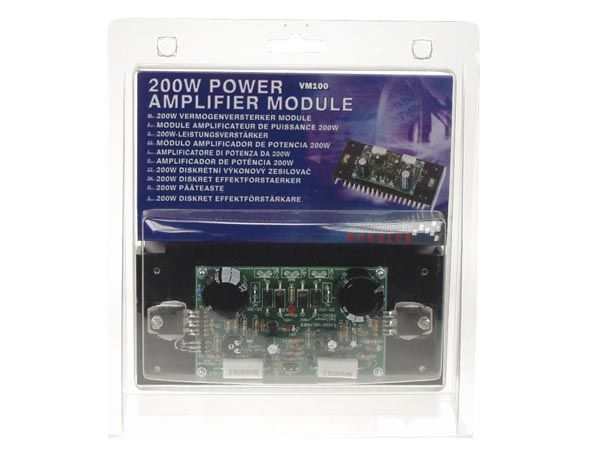

Whadda 200W Power Amplifier Module WMAH100

Whadda
WMAH100
5410329732813
    1-5 Days
  • Description
  • More Details
  • Specifications

Replacement for Velleman VM100

Fully discrete design using Epitaxial Darlington transistors. DC supply circuit on board with LED indication. Ideal for active speaker system or subwoofer, guitar amp, home theatre systems, instrument amp, etc.
  • excellent value for money
  • fully discrete design using Epitaxial Darlington transistors
  • DC supply circuit on board with LED indication
  • ideal for active speaker system or subwoofer, guitar amp, home theatre systems, instrument amp, etc.
  • comes fully adjusted and tested
  • overload and short-circuit protection
  • 200W music power @ 4 ohm load
  • 100Wrms power @ 4 ohm load
  • 70Wrms power @ 8 ohm load
  • distortion: 0.02% @ 1KHz/10W
  • damping factor: >800
  • frequency response: 3Hz to 200KHz (-3dB)
  • sensitivity: 0.6Vrms
  • signal to noise ratio: 115dB

    Click to open Manual
    • Dimensions: 107 x 62mm (PCB)

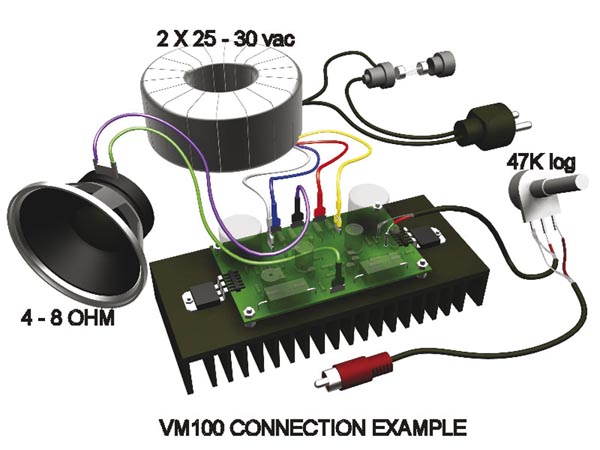

    Power Supply: 2 x 25-30Vac, 120VA
    Suitable Transformer
    Self Assembly Kit
