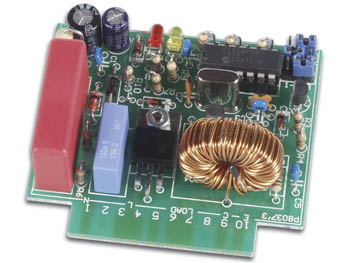

Bus Dimmer for Home Modular Light System Kit K8037

Velleman
K8037
5410329309282
    No Stock
  • Description
  • More Details
  • Specifications

No longer available

Dimmer to be used in our K8006 home light system, suitable for incandescent lamps, mains voltage halogen lighting and low voltage halogen lighting in combination with a conventional (wire wound) transformer. Easy pushbutton operation: a brief push toggles on/off, while continued pushing engages dimming action. Non volatile memory for last set light intensity. Lots of safety features to make lamps last longer, such as "soft-start" and automatic deactivation after 12 hours or after 20 min at insufficient intensity. Transformer protection in case of defective light sources, LED status indication.

  • suppression of radio & TV interference according to EN55015
  • operating voltages: 110-125V or 220-240V AC (50/60Hz)
  • max. load: 350W/230V or 170W/115V
  • max. phase shift with inductive load: 30°
  • dimming speed: ± 5 sec.
  • PCB dimensions: 65 x 57 x 25mm / 2.6 x 2.3 x 1"

    Manual
    Click to open

  • Dimensions: 65 x 57 x 25mm
    Power Supply: 110-125 or 220-240Vac 50/60Hz
