4-Channel Recorder/Logger Kit K8047

Velleman
K8047
5410329217204
    No Stock
  • Description
  • More Details
Available pre-assembled: PCS10

No Longer Available

Record DC signals or slow-moving signals over very long periods. The measurements are automatically stored on your hard disk for further processing, no power supply is necessary thanks to the USB connection and installation is easy and straightforward. Signals are instantly displayed on the PC screen using an analogue or DVM display. USB cable, PC-LAB2000 Software & Enclosure included.

  • hardware:
    • USB connected and powered
    • four DC coupled input channels
    • input resistance: 1Mohm
    • maximum samples per second: 100
    • four input ranges: 3V / 6V / 15V and 30V
    • sensitivity: 10mV
    • accuracy: ± 3% of full scale
    • maximum input: 30Vdc
    • power and recording/diagnostic LED
  • software:

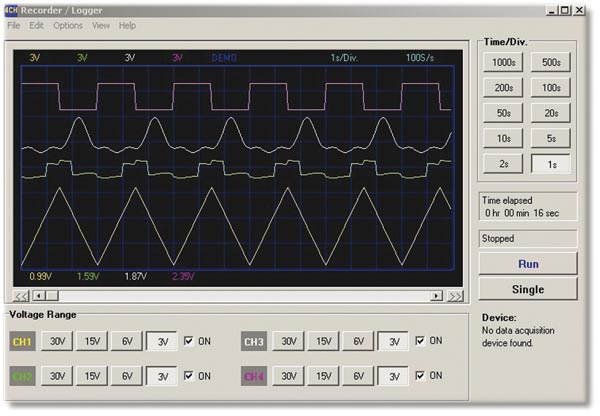

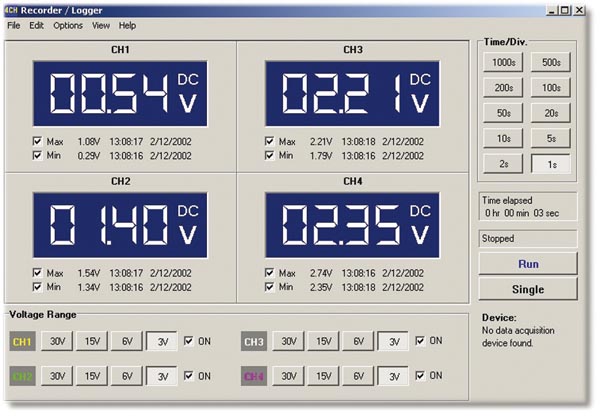

    • analogue trace or digital DVM readout
    • 4 channels record simultaneously
    • minimum / maximum sample hold function for DVM
    • from 1 sec to 1000 sec per division
    • storage and recall of screens (full colour) or data
    • automatic recording option for long recordings
    • on screen markers for time and voltage
    • DLL included for your own developments
