Three in one Lab Unit LAB1

Velleman
LAB1
5410329343798
    No Stock
  • Description
  • More Details

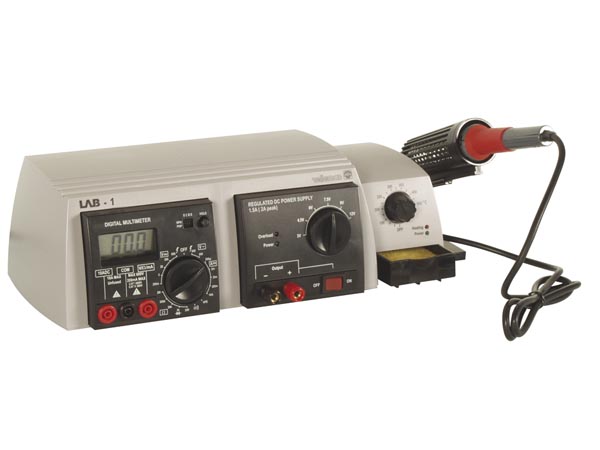

Velleman Instruments LAB1

Your space saving lab solution! LAB1 Includes: 1 multimeter, 1 power supply & 1 soldering iron, this unit covers 99% of your home lab needs, perfect solution for starters or schools. Supplied with one soldering iron bit.
  • digital multimeter:
    • 3 1/2 backlit LCD
    • automatic polarity indication
    • DC voltage: 200mV to 600V in 5 steps
    • AC voltage: 200V and 600V
    • DC current: 200µA to 10A in 5 steps
    • resistance test: 200 ohm to 2Mohm
    • diode, transistor and continuity test
    • data-hold function and buzzer
    • CATI 600V
    • CATII 300V
  • regulated power supply:
    • selectable output voltages: 3 - 4.5 - 6 - 7.5 - 9 - 12Vdc
    • output: 1.5A (2A peak)
    • LED overload indication
    • with output on/off switch
    • very low ripple
    • LED power indication
  • soldering station:
    • low-voltage iron: 24V
    • ceramic 48W heating element with temperature sensor
    • temperature range: OFF - 150 - 450°C
    • lead-free soldering possible
    • supplied with sponge and spare bit



    Click to open Manual
