Whadda Rolling Clock Minikit WST123

Whadda
WST123
5410329733674
    1-5 Days
  • Description
  • More Details
  • Specifications

Replacement for Velleman MK123

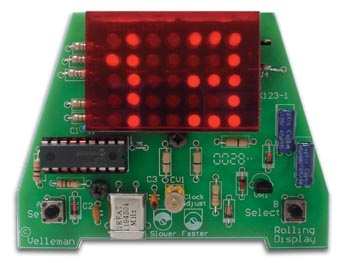

Nicely animated rolling time and date display. Graphic display with 35 LED's. Select hours, minutes, month or day with SELECT and enter the values with SET. Time display in 12h-mode (24h-mode when setting clock). Fine-tune the clock with CV1.
  • current consumption: 20mA max.
  • backup battery: 9V block type 6LR61 / 6F22

      Constructional Kit: Normal


    Manual
    Click to open

  • Dimensions: 46/89 x 67mm (PCB)
    Power Supply: 9-12Vdc
