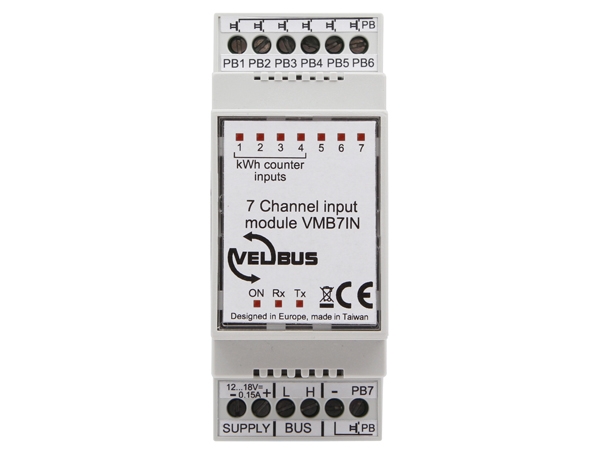

Velbus 7-Channel Input Module VMB7IN

Velleman
VMB7IN
5410329478988
    5-10 Days
  • Description
  • More Details
  • Specifications
The Velbus VMB7IN. Connect any type of sensor or switch (distance is not an issue) and you can control anything. E.g. connect the motion detector of your driveway and switch on the garden lighting for 2 minutes… The module has very extended timer functions. The first 4 inputs can be used as counter inputs for connection of a kWh counter, to measure the power consumption.

Features

  • contacts may be placed at a long distance from the module
  • local buttons and LED indication per input
  • different reaction times can be set for each input: 0, 1, 2 or 3 seconds
  • complete configuration via Velbus PC interface (e.g.VMB1USB, VMBRSUSB) and VELBUSLINK
  • detects long or short press to activate second channel
  • multi-channel possibility, each short press activates next channel
  • extended day, week and year timers with possible sun (rise/set) synchronisation
  • connect a kWh counter (EMDIN01, EMDIN02 or EMDIN03) and monitor your energy consumption using; VELBUSLINK or one of our operation panels VMBLCDWB, VMBLCDBB, VMBGPOW, VMBGPOB.
  • LED indication for supply and data
  • 250 possible addresses
  • standard DIN-rail housing : 2 modules
Click to open  Manual
 Click to open  Datasheet
   Software
  Catalogue




Dimensions: 90 x 36 x 58mm
Power Supply: 12-18Vdc / 30mA Standby, 150mA Max
