Velleman 2 Channel WLAN / WiFi Digital Storage Oscilloscope WFS210

Velleman
WFS210
5410329579487
    No Stock
  • Description
  • More Details

No longer available

The Velleman WFS210 is the world's first WLAN dual channel digital storage oscilloscope geared towards tablet computers. Apple & Android App. now available

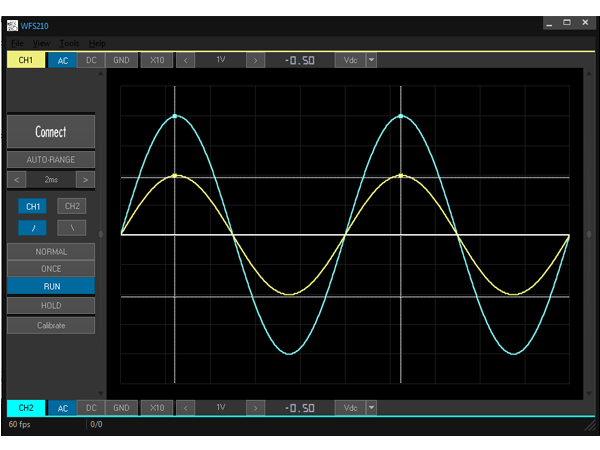

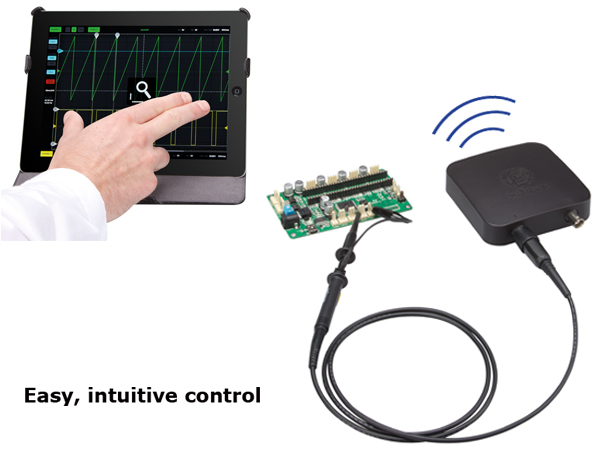

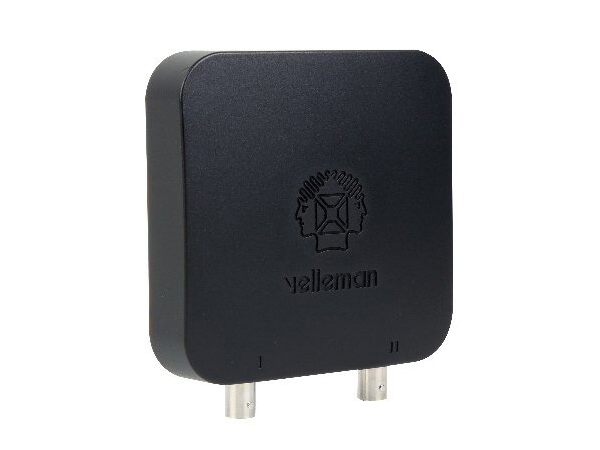

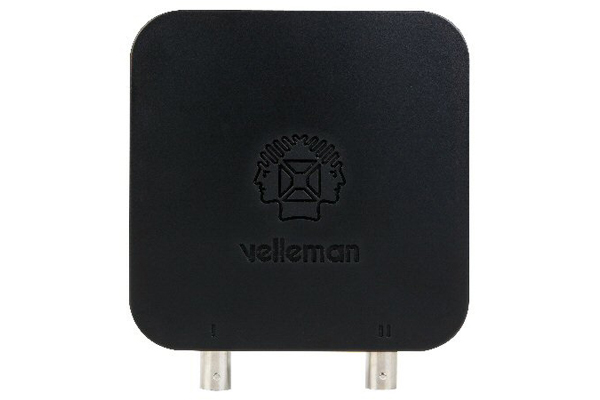

The WFS210 is a compact, portable battery powered fully featured two channel WiFi oscilloscope. Instead of a built-in screen it uses your tablet (iOS/Android™) or PC(Windows) to display the measurements. Data exchange between the tablet and the oscilloscope is via WLAN (WiFi).

Latest stock, featuring firmware fix for iOS 10

  • two independent channels
  • high sensitivity: up to 0.2mV
  • full auto setup function
  • signal markers
  • hold function
  • probe x1/x10 function (probe not included)
  • DVM readouts
  • fully documented protocol
  • Li-ion rechargeable battery included
  • input range: 5mV to 20V/div (12 steps)
  • timebase: 1µs to 1s/div
  • max. 30Vpp input
  • bandwidth: 2 x 10MHz (-3dB at selected ranges)
  • real time sample rate: 2 x 10MS/s
  • input impedance: 1Mohm
  • input coupling: AC+DC, AC and GND
  • AD resolution: 8 bit
  • sample buffer: 4K/channel
  • readouts: DC, AC+DC, True RMS, dBm, Vpp, Vmin, Vmax.
  • power consumption (battery): 160mA (max.)
  • battery: Li-ion 3.7V 1800mAh
  • USB charge current: 5V/500mA max.
  • weight: 180g
  • dimensions: 100 x 100 x 35mm
  • Minimum system requirements:
      • Android™ 4.0
      • iOS
      • Windows XP or higher
      • Tablet or PC

   Instrument: Pre-assembled & Tested
   User Manual
   Data Sheet
   Getting Started Manual
   Interface Protocol for Developers
   Software

  Android App
