240Vac PIR Motion Detector PIR1300

Velleman
031-240
5410329624453
Quantity Discounts Available
    1-5 Days
  • Description
  • More Details
  • Specifications

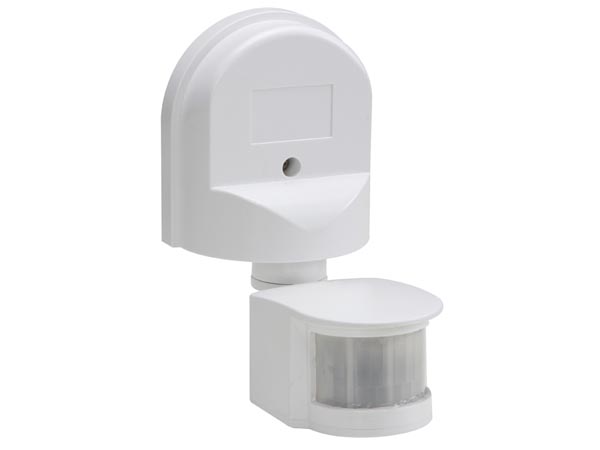

A simple to install outdoor/indoor PIR motion detector ideal for switch 240V lighting as a person enters a room or garden. Adjustable detection up/down and left/right. Night / Day adjustable detection. Trigger time from 10 seconds to 7 minutes.
  • detection range: 5 - 12 m max.
  • detection angle: 180°
  • ambient light: < 3 - 2000 lux (adjustable)
  • installation height: 1.8 - 2.5 m
  • power consumption: approx. 0.5 W
  • motion speed detection: 0.6 - 1.5 m/s
  • working temperature: -20 °C to + 40 °C
  • working humidity: < 93% RH
  • max. rated load:
    • resisitve: 1200 W (230 VAC)
    • inductive: 300 W (230 VAC)
  • IP rating: IP44
  • switch type: relay
  • relay output: normally open (N.O.)
  • switch-off delay: ± 10 seconds to ± 7 minutes

    pdf

    		  Manual
    • Dimensions:
    Power Supply: 230Vac 0.5W
