325-012

Transformers

230Vac Primary transformers for use with various Velleman Kits
!
Velleman
1-5 Days
300-0XX
Weight: kg

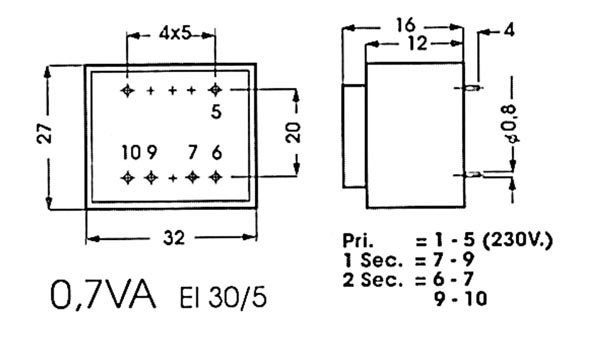

0.7VA Encapsulated Transformer

Fully encapsulated transformer designed for direct mounting on to printed circuit board. Single 230Vac primary winding with a wide range of secondary voltages.
Dimensions: 32 x 27 x 16mm
Primary: 230Vac
Rating: 0.7VA
Fixing: PCB Mounting
Velleman
1-5 Days
300-1XX
Weight: kg

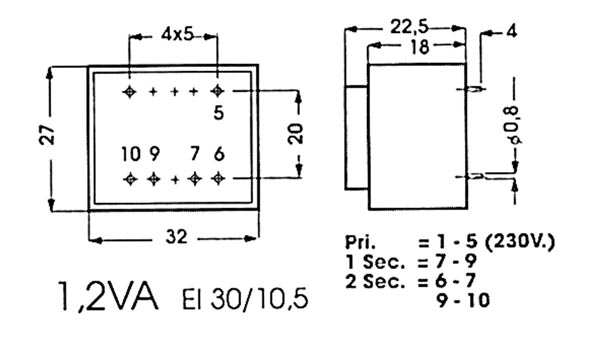

1.2VA Encapsulated Transformer

Fully encapsulated transformer designed for direct mounting on to printed circuit board. Single 230Vac primary winding with a wide range of secondary voltages.
Dimensions: 32 x 27 x 22.5mm
Primary: 230Vac
Rating: 1.2VA
Fixing: PCB Mounting
Velleman
1-5 Days
300-3XX

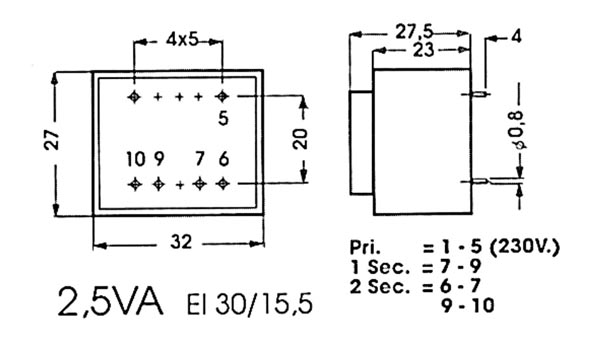

2.5VA Encapsulated Transformer

Fully encapsulated transformer designed for direct mounting on to printed circuit board. Single 230Vac primary winding with a wide range of secondary voltages.
Dimensions: 32 x 24 x 27.5mm
Primary: 230Vac
Rating: 2.5VA
Fixing: PCB Mounting
Velleman
5410329258429
1-5 Days
300-520

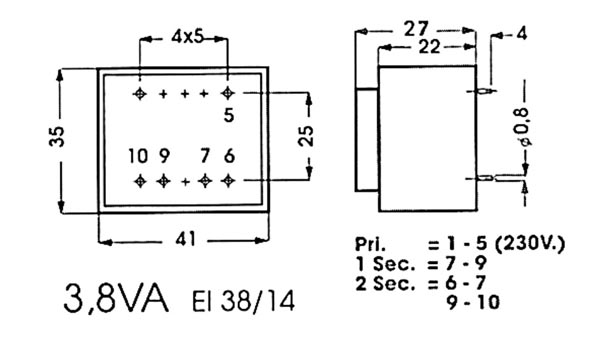

Encapsulated Transformer 0 - 12V (1 x 307mA)

Fully encapsulated transformer designed for direct mounting on to printed circuit board. Single 230Vac primary winding with a wide range of secondary voltages.
Dimensions: 41 x 25 x 27mm
Primary: 230Vac
Secondary: 0-12Vac
Rating: 3.8VA (1 x 307mA)
Fixing: PCB Mounting
Velleman
1-5 Days
300-6XX

5VA Encapsulated Transformer

Fully encapsulated transformer designed for direct mounting on to printed circuit board. Single 230Vac primary winding with a wide range of secondary voltages.
Dimensions: 44 x 27 x 33mm
Primary: 230Vac
Rating: 5VA
Fixing: PCB Mounting
Velleman
5410329259617
1-5 Days
300-755
Weight: kg

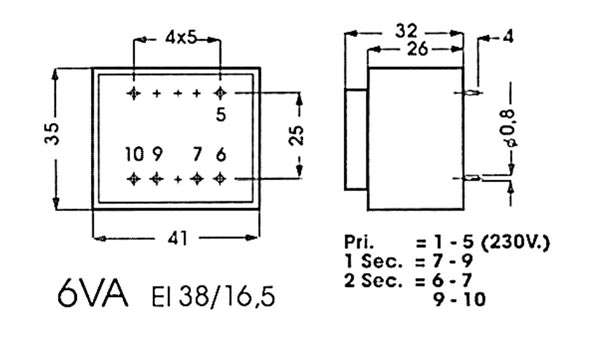

Encapsulated Transformer 6VA 0-9, 0-9V (2 x 333mA)

Fully encapsulated transformer designed for direct mounting on to printed circuit board. Single 230Vac primary winding with a wide range of secondary voltages.
Dimensions: 41 x 35 x 32mm
Primary: 230Vac
Secondary: 0-9, 0-9Vac
Rating: 6.0VA (2 x 333mA)
Fixing: PCB Mounting
Velleman
5410329258597
1-5 Days
300-825
Weight: kg

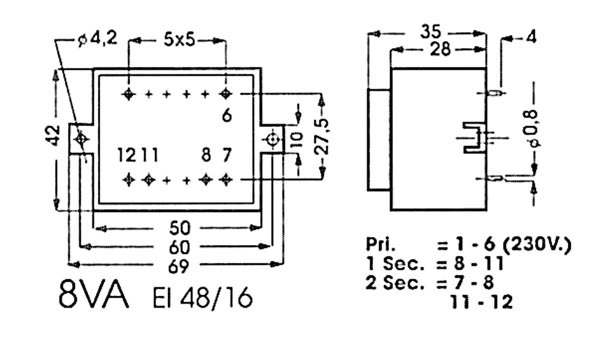

Encapsulated Transformer 8VA 0-15V (1 x 0.55A)

Fully encapsulated transformer designed for direct mounting on to printed circuit board. Single 230Vac primary winding with a wide range of secondary voltages.
Dimensions: 50 x 42 x 35mm
Primary: 0-230Vac
Secondary: 0-15Vac
Rating:

8.0VA (1 x 0.55A)

Fixing: PCB Mounting
Velleman
1-5 Days
300-9XX
Weight: kg

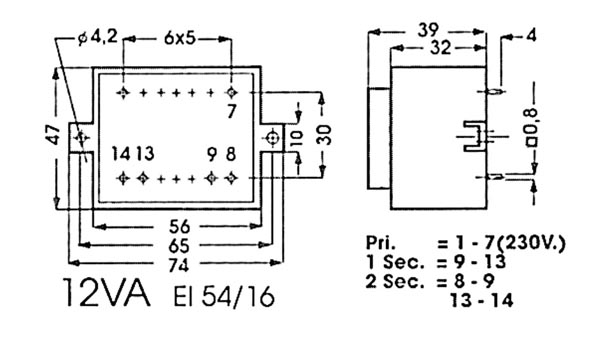

12VA Encapsulated Transformer

Fully encapsulated transformer designed for direct mounting on to printed circuit board. Single 230Vac primary winding with a wide range of secondary voltages.
Dimensions: 56 x 47 x 39mm
Primary: 0-230Vac
Rating:

12VA

Fixing: PCB Mounting
Velleman
1-5 Days
301-0XX

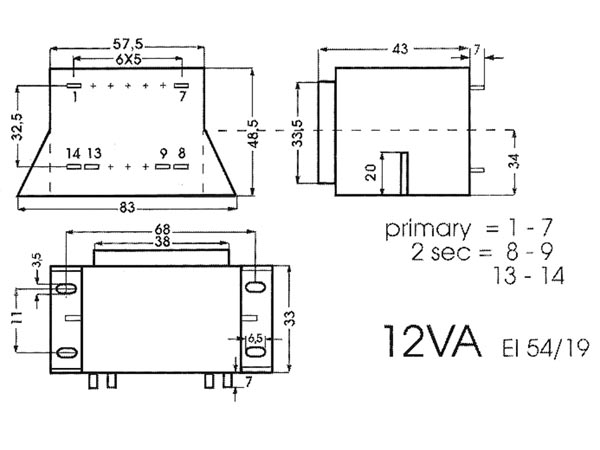

12VA Side Tag Transformer

These 12VA Side Tag transformers have 230Vac primary winding and split secondary windings. These can be connected in series for split rail supplies or wired in parallel to increase current rating. The transformer is enclosed in a plastic housing with the terminals accessible by solder tags on one side.
Dimensions: 83 x 43 x 33mm
Primary: 230Vac
Rating: 12VA
Fixting: 68 x 11mm Centres
Velleman
1-5 Days
301-1XX
Weight: kg

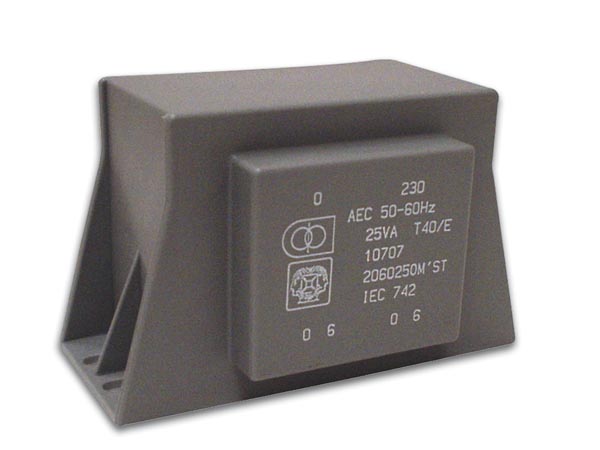

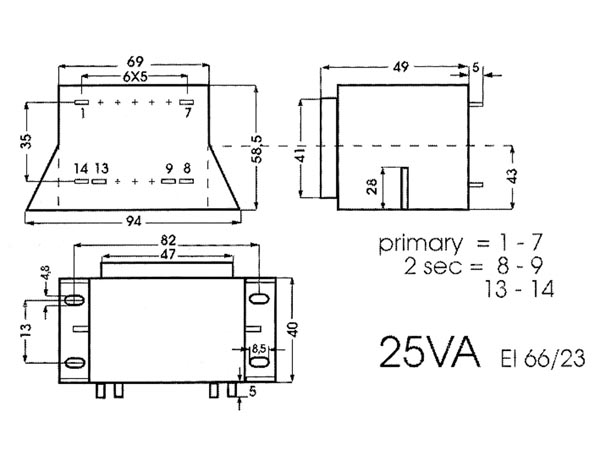

25VA Side Tag Transformer

These 2VA Side Tag transformers have 230Vac primary winding and split secondary windings. These can be connected in series for split rail supplies or wired in parallel to increase current rating. The transformer is enclosed in a plastic housing with the terminals accessible by solder tags on one side.
Dimensions: 94 x 49 x 40mm
Primary: 230Vac
Rating: 25VA
Fixting: 82 x 13mm Centres
