5VA Encapsulated Transformer

Velleman
300-6XX
    1-5 Days
  • Description
  • More Details
  • Specifications
Fully encapsulated transformer designed for direct mounting on to printed circuit board. Single 230Vac primary winding with a wide range of secondary voltages.
  • isolation resistance: >5Mohm / 500Vdc
  • electric strength: >5kV min.
  • designed for an ambient temperature of max. 40°C
  • thermal class E, materials to max. 120°
  • short-circuit protection up to 3VA
  • possibility of thermal fuse protection
  • max. temperature for class E: 95°C
  • secondary voltage tolerance: +7% - 3% at 230V and max. load
  • perfect solderability for wave bath
  • CE labelled
  • creepage distances and clearances according to IEC742

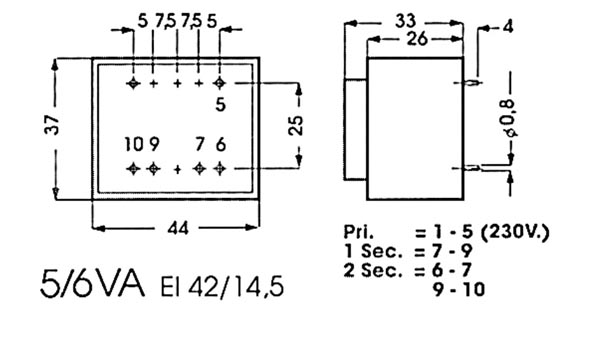

    • Dimensions: 44 x 27 x 33mm
    Primary: 230Vac
    Rating: 5VA
    Fixing: PCB Mounting
