Velleman Kits & Projects

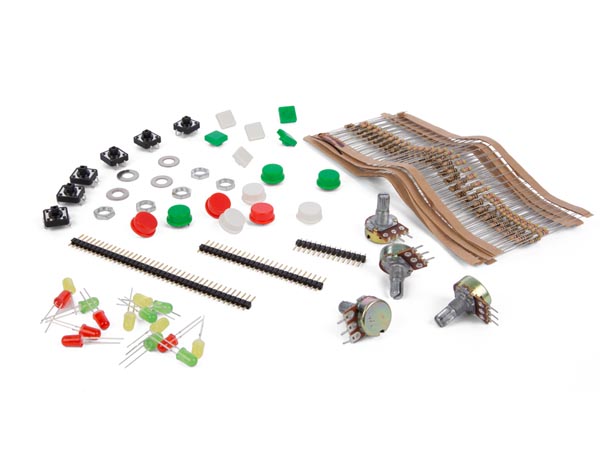

Over 250 piece component accessory kit with a storgae case for your Arduino or other microcontroller project.

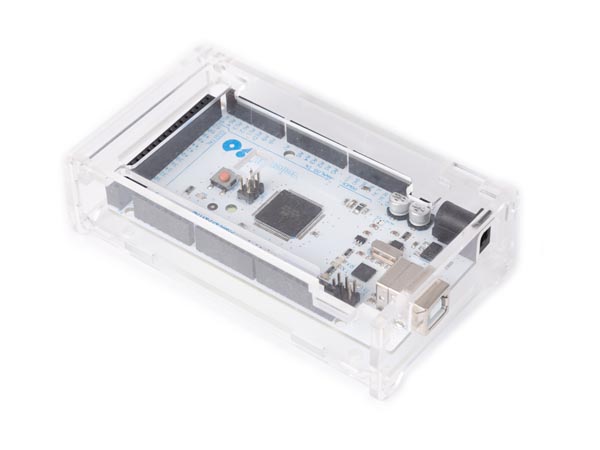

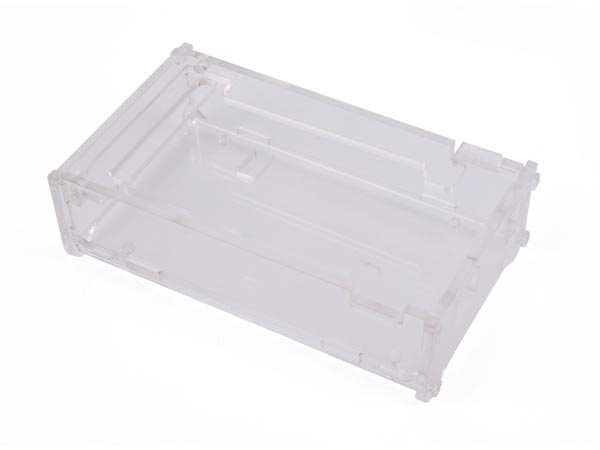

Clear acrylic case for an Arduino Mega 2560 with opening for USB, Power and interface connections, supplied with fixings.

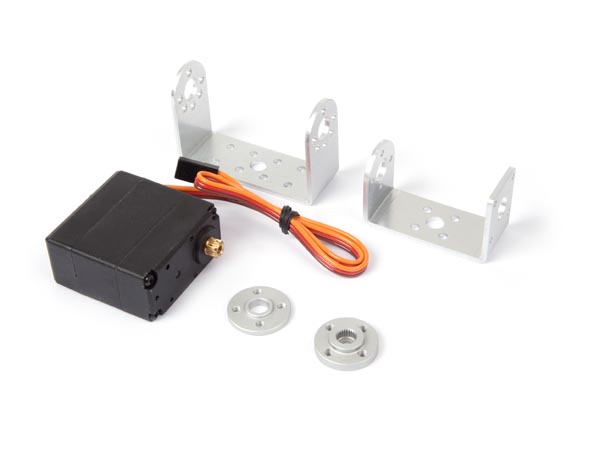

Double shaft servo kit.

Ever wondered how good the air quality is in your living room? Or do you need proof of why you fall asleep in a non-ventilated meeting room after 3 hours? Look no further! This DIY experimental kit has all the answers!

The Earth Listener is an Arduino based sensor device that reads multiple environmental values to indicate the air quality. This kit is assembled in 15 minutes and you don't need a soldering iron! Just connect the parts and wires, put everything in the case and connect it to a 5V USB socket. The Mega development board is pre-programmed and shows eCO², TVOC (particles in the air), barometric pressure, temperature and humidity values onto the TFT touchscreen. To top thing off, the Earth Listener also contains a lightning detection sensor. If lightning (or electronic discharge) is detected, the Earth Listener will give an alarm tone and log how far the lightning is located. Since everything is open source, you can add an additional 6 sensors to the Earth Listener via the sensor shield. Logging is possible via the micro SD card (not included).

This flat cable can easily be stripped apart into a single (or multiple) jumper wires.

Clear acrylic case for an Arduino UNO with opening for USB, Power and interface connections, supplied with fixings.
Dimensions: 79 x 65 x 21mm

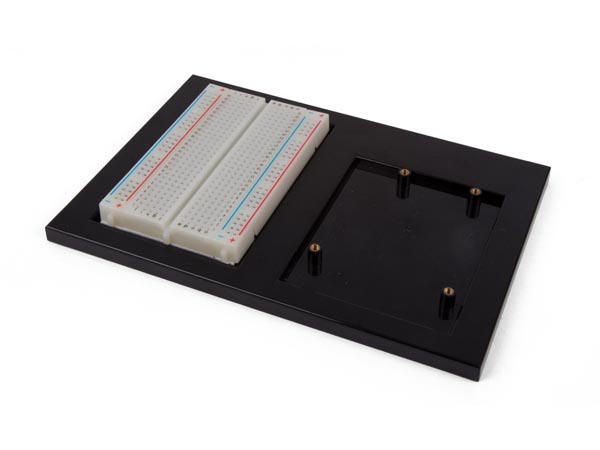

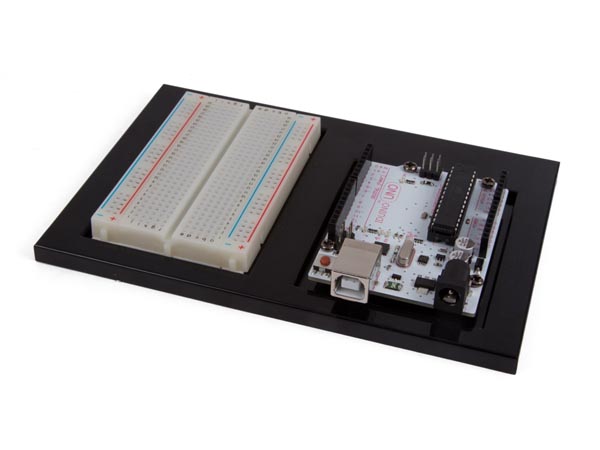

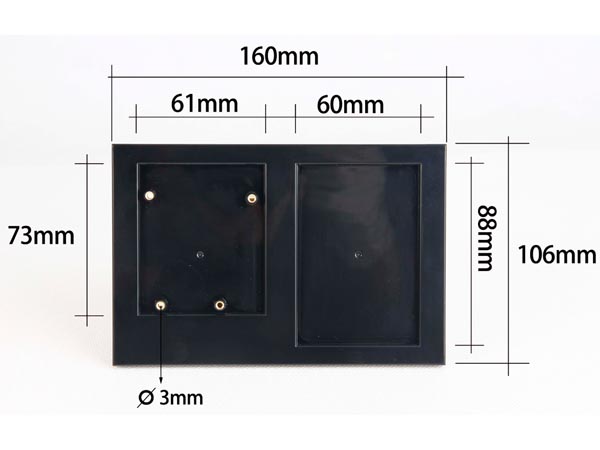

The project holder allows you to attach the Arduino® UNO and the included breadboard together. It contains two grooves (one groove size is 88 x 60 mm), which is the just right size to fit a 400 holes breadboard; the other groove is for the Arduino UNO. The position of 4 M3 screw holes fits the Arduino UNO mounting holes. The holder comes with 4 screws (M3 x 8).

The WPB100 (Arduino® Uno compatible) is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analogue inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The WPB101 (Arduino® Compatible) Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila

The Whadda WPB102 (Arduino® Compatible Nano 3.0) is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x) orATmega168 (Arduino Nano 2.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a mini-B USB cable instead of a standard one.
